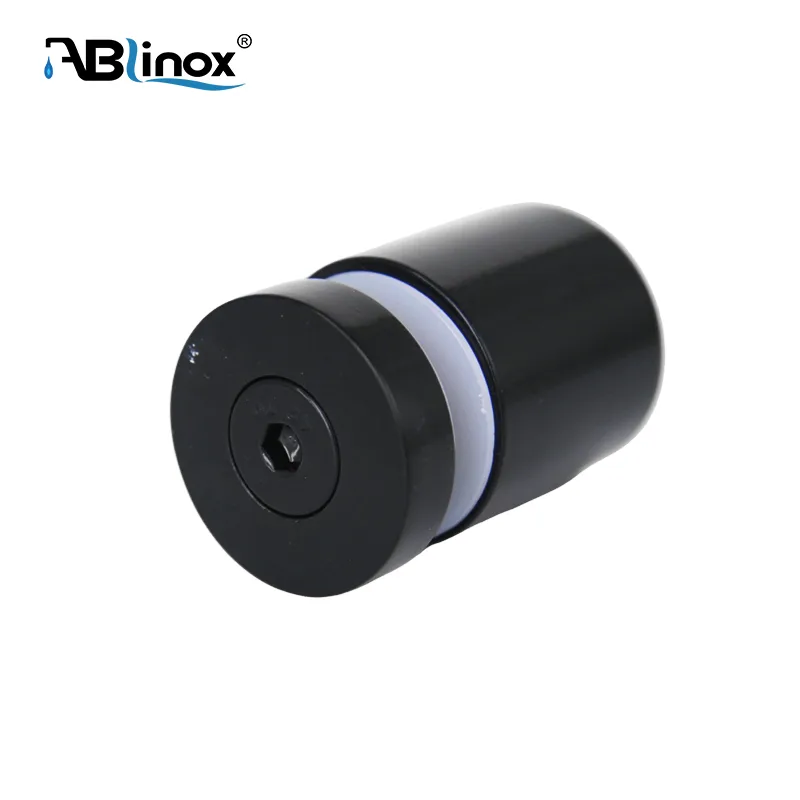

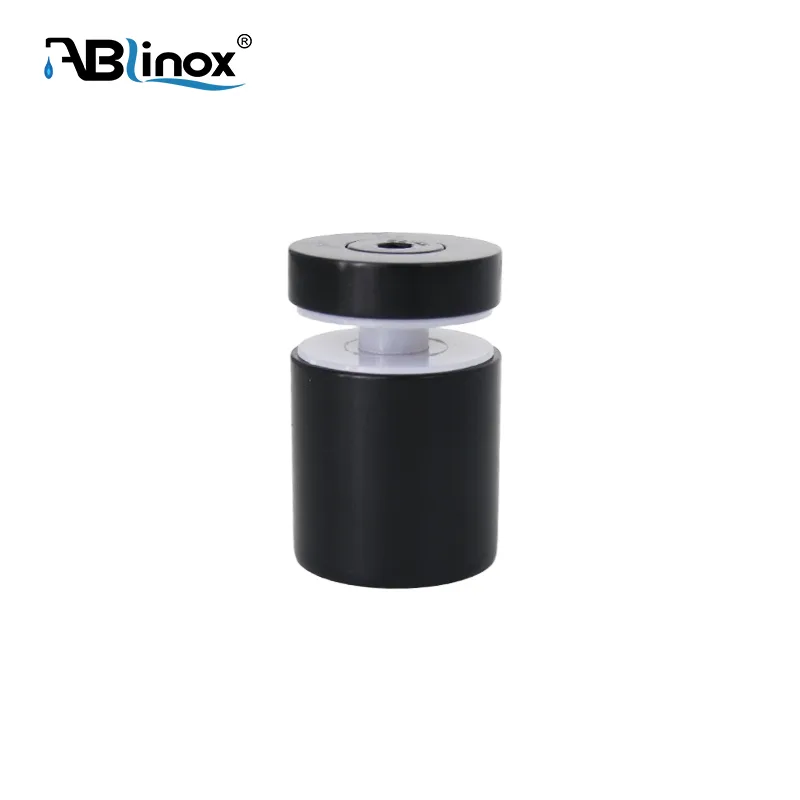

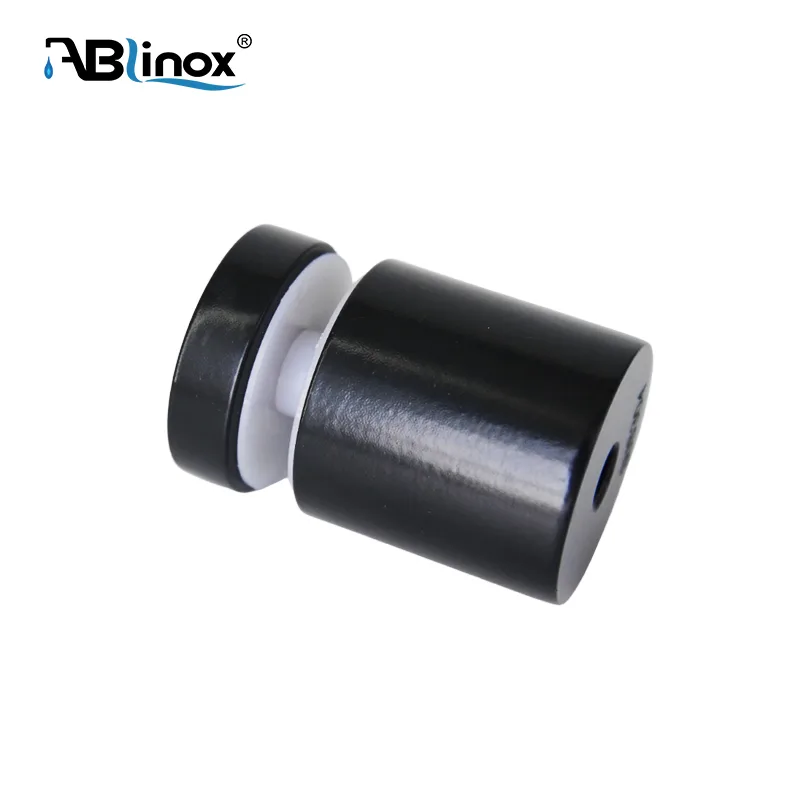

Stainless steel glass black Point holder
INQUIRY
Description
- For remote installation with 25mm plates, small brackets, glass and plastic information indicators. Diameter: 30 millimeters, shell material – stainless steel. Connect the clamping screws through a hole 10mm to 15mm thick. The inner diameter is 9mm.
Parameter
Diameter of the handle ø 30 mm
Spacer sleeve ø 30×20 mm with M8 thread
Mounting on the M8 rod
For glass 4-16 mm
Minimum mounting hole in the glass – ø 13 mm
Mounting to a flat surface
Seals insulating glass from steel – silicone (milk) thickness 2mm – set included
Satin surface (matte)
Material: stainless steel AISI 304
Application
