Stainless Steel handrail pipe elbow accessories
INQUIRY
Description

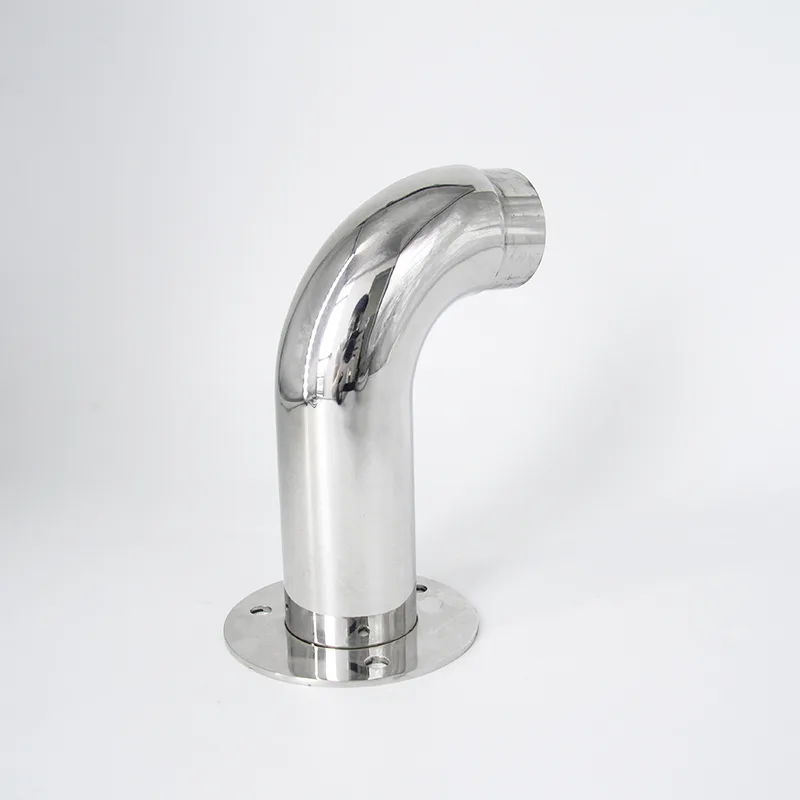

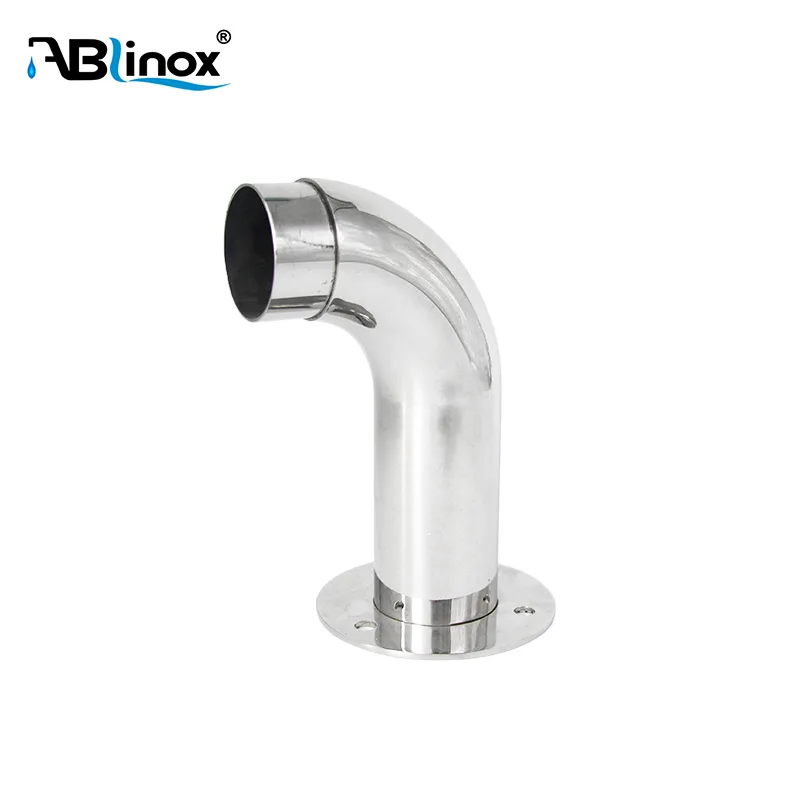

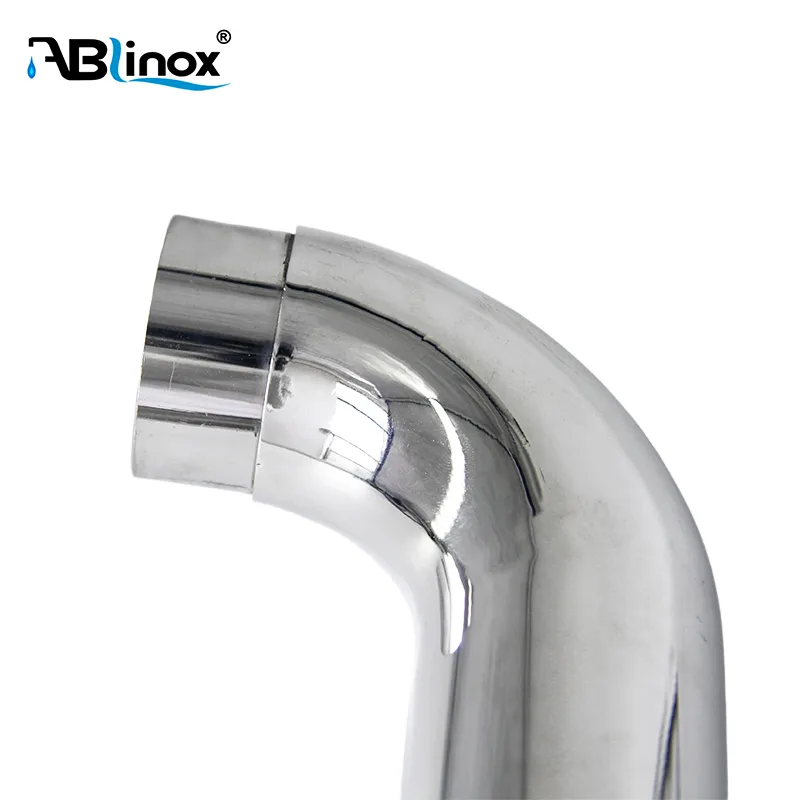

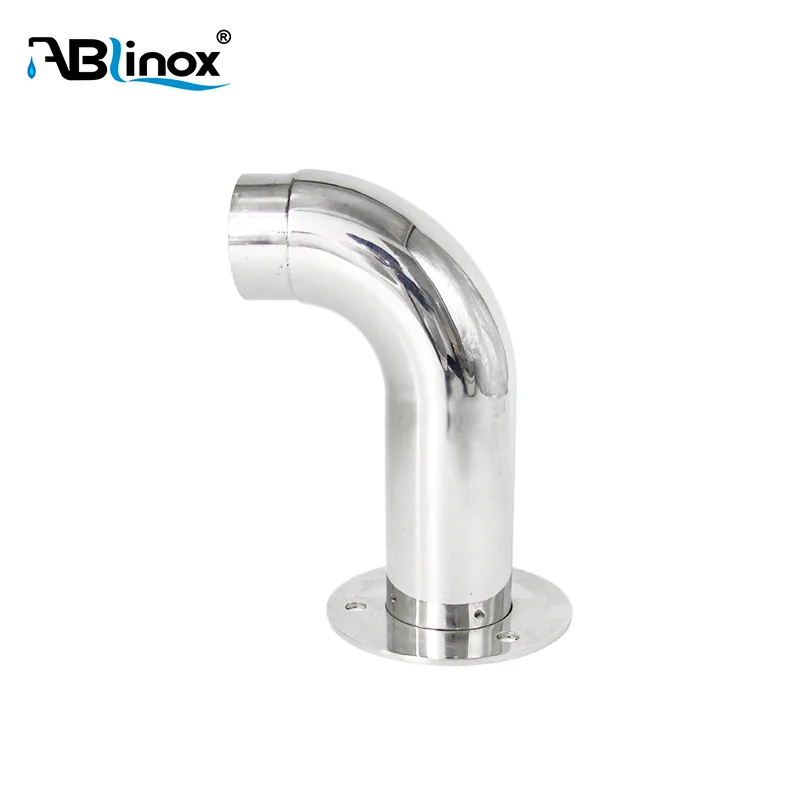

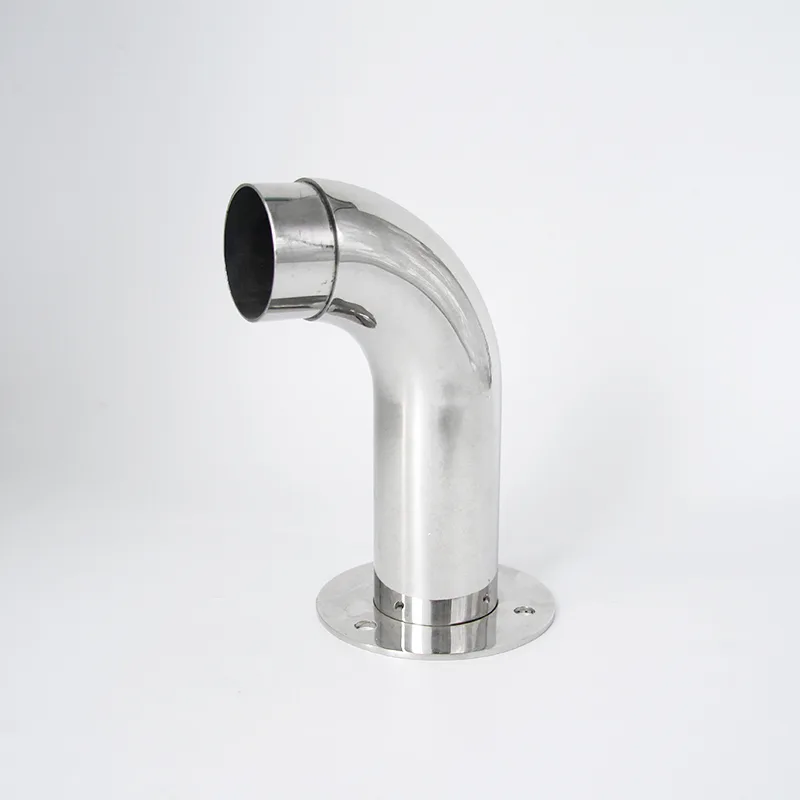

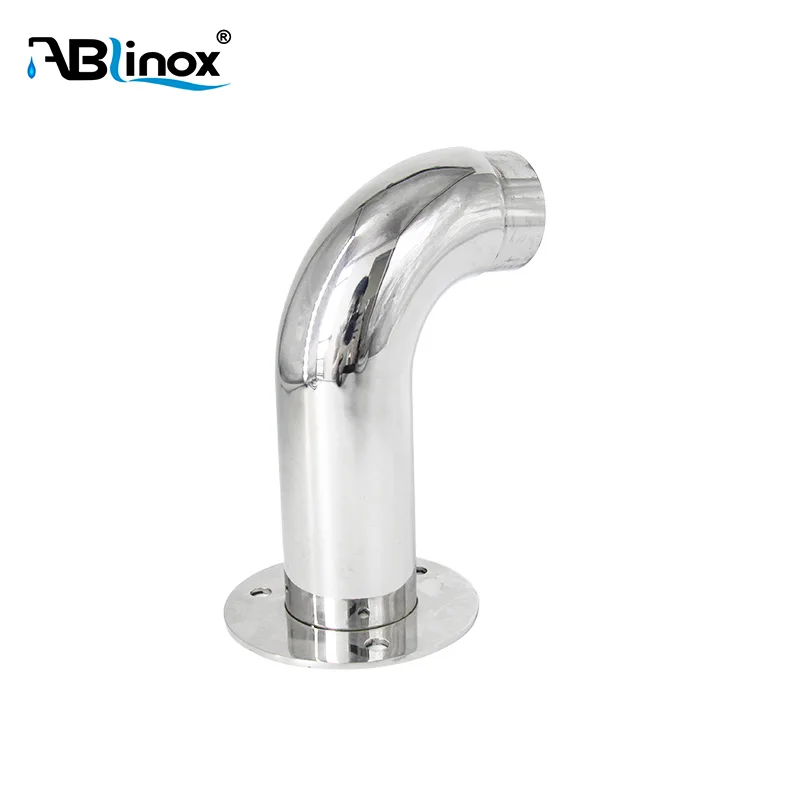

This component is used to attach a handrail with a diameter of 42.4 mm in situations where a 90-degree turn is required and the handrail needs to be secured to a wall. The handrail mounting features three holes for self-tapping screws with countersunk heads. The countersunk heads are flush with the flange and do not protrude. The outer diameter of the mounting component is 76 mm. The mounting part of the component is inserted into the tube and secured using a clip, welding, or glue.
Parameter
Material: AISI 304
Surface: Polished (600 Grit) Assembly
Type: Screwed Assembly
Diameter of Tube/Handrail/Rail: 42.4mm
Application
