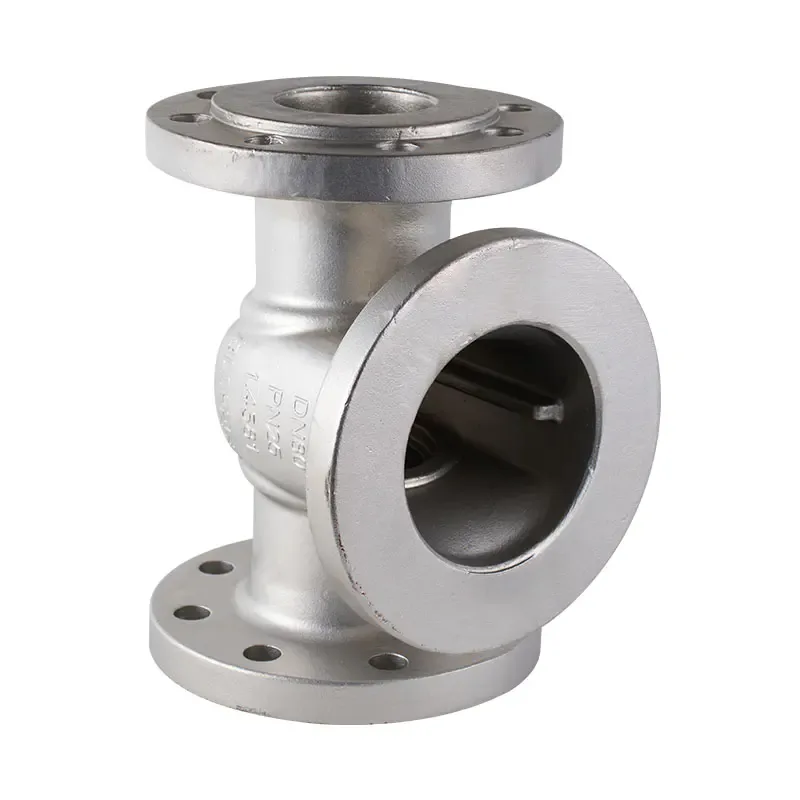

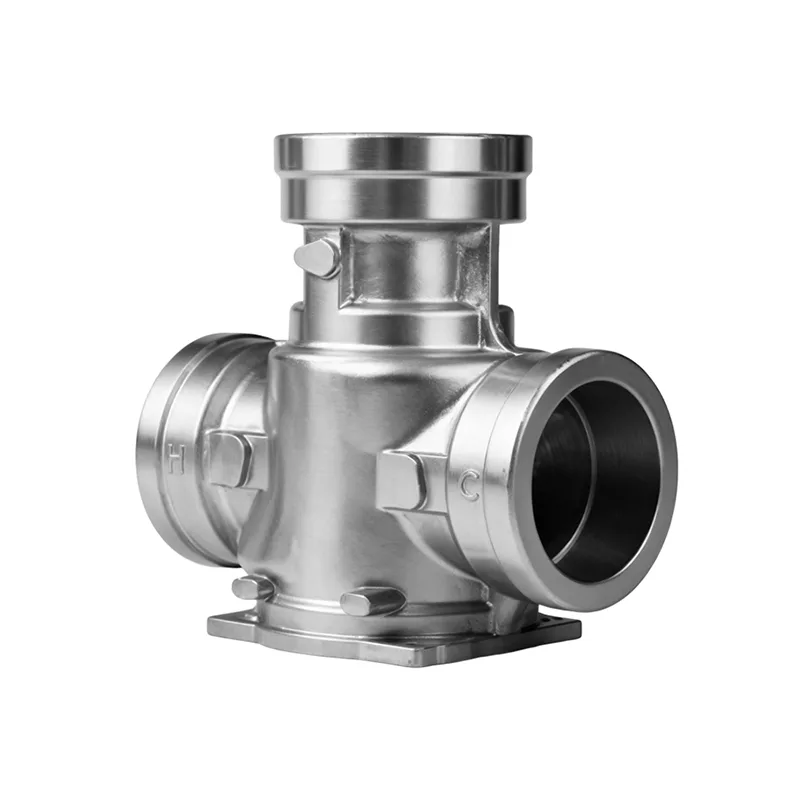

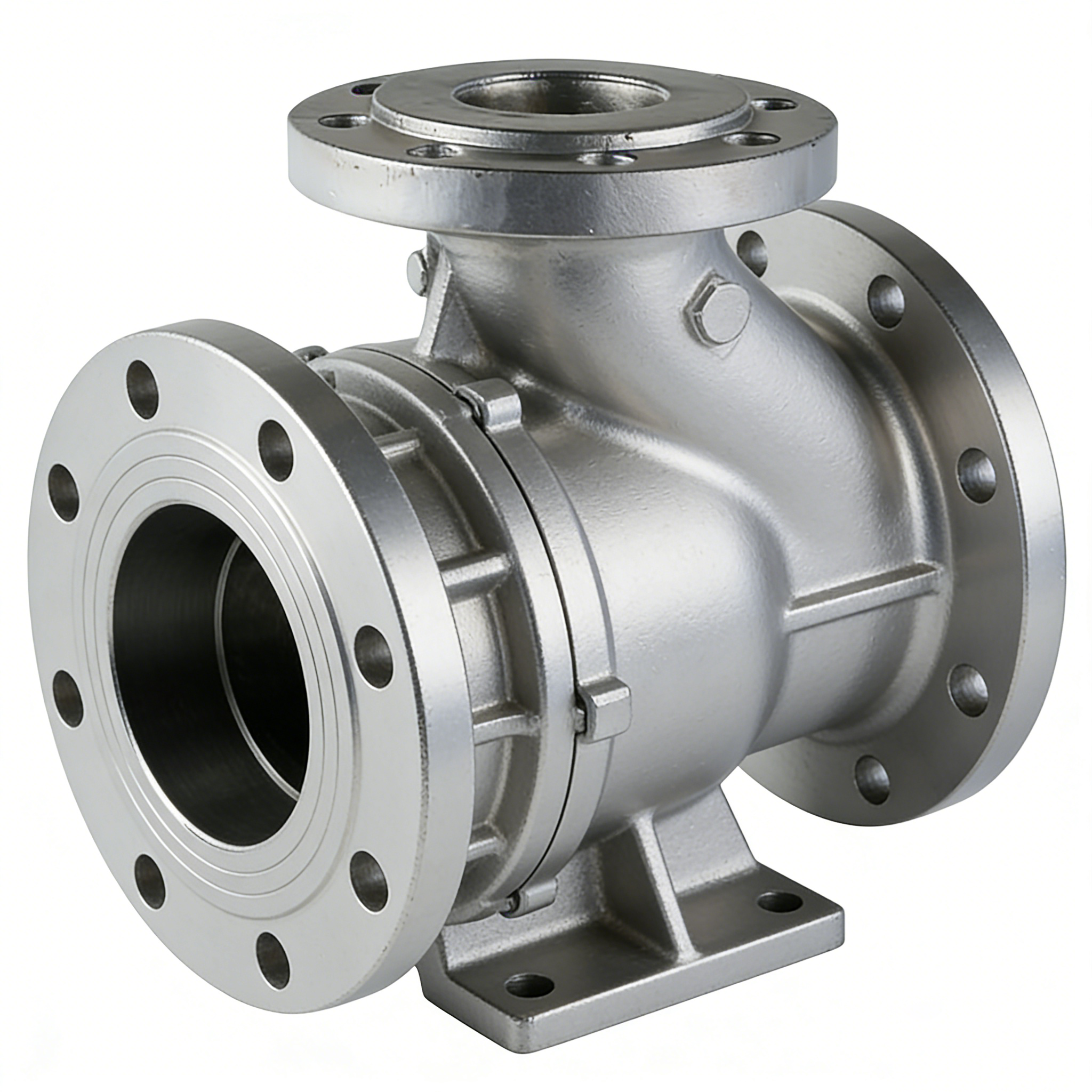

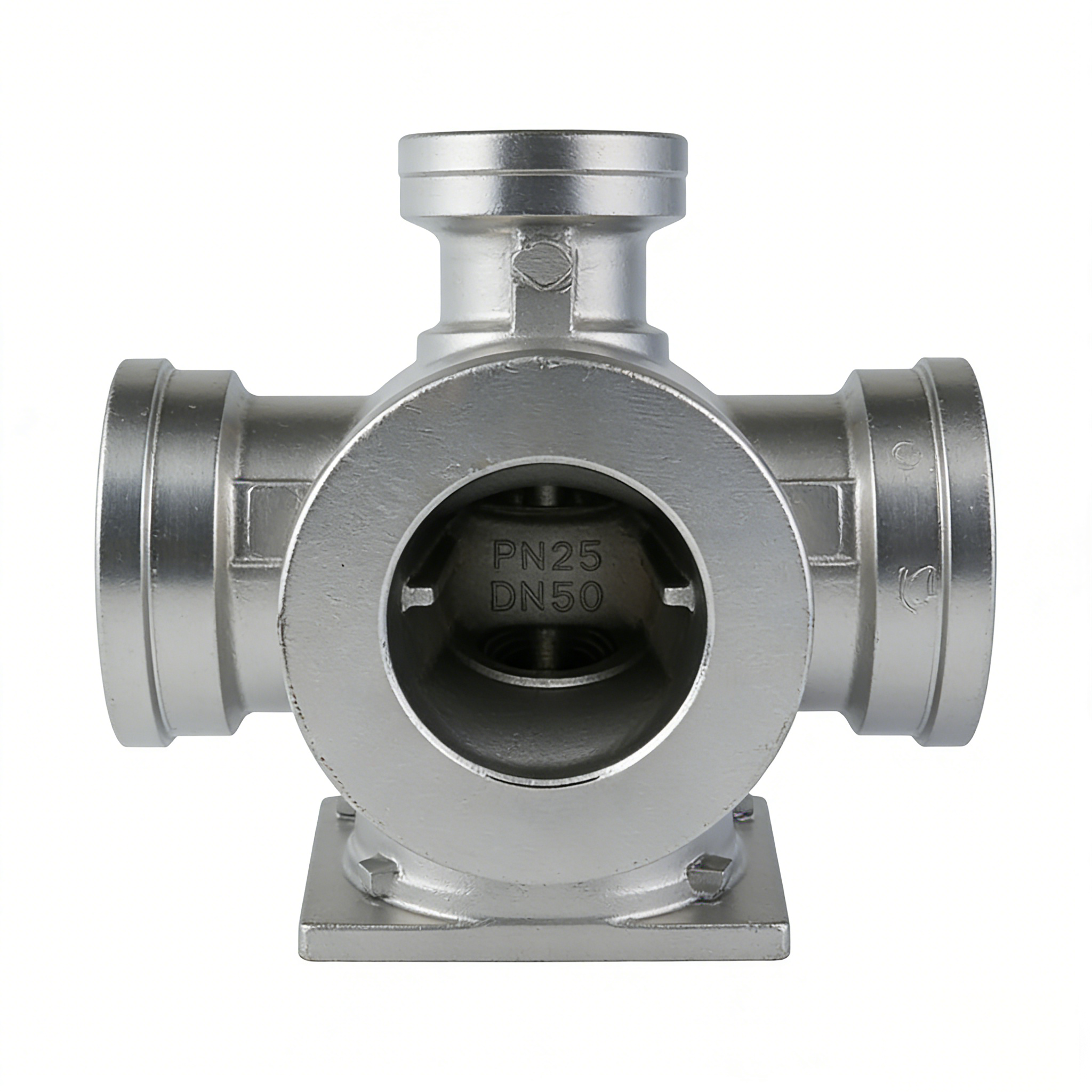

Custom Stainless Steel Industrial Pump Body – Investment Casting
Description
-
PRECISION CAST STAINLESS STEEL CONSTRUCTION: Manufactured using advanced investment casting (lost wax / silica sol) or high-quality sand casting processes. The pump body is engineered to deliver superior dimensional accuracy, smooth internal flow passages, and excellent surface finish for optimal hydraulic performance.
-
Our Stainless Steel Industrial Pump Bodies are precision-engineered fluid handling components designed for demanding applications across chemical processing, water treatment, food and beverage, pharmaceutical, and marine industries. Manufactured using advanced casting technologies and premium stainless steel alloys, these pump bodies deliver exceptional corrosion resistance, mechanical strength, and long-term reliability.
Parameter
1. Advanced Casting Technologies
We employ multiple casting processes to suit your design complexity and volume requirements:
| Process | Best For | Key Benefits |
|---|---|---|
| Investment Casting | Complex geometries, thin walls, intricate internal passages | Near-net shape, CT6-7 tolerances, Ra 1.6-6.3μm surface finish |
| Sand Casting | Large pump bodies, heavy-wall designs | Cost-effective for larger sizes, up to 500kg single piece |
| Precision Sand Casting | Medium complexity, mid-to-large sizes | Good dimensional accuracy, economical for medium volumes |
2. Material Selection Guide
| Grade | Equivalent | Corrosion Resistance | Typical Applications |
|---|---|---|---|
| CF8 | AISI 304 | Good – general purpose | Clean water, light chemicals, HVAC |
| CF8M | AISI 316 | Excellent – chloride resistance | Chemical processing, marine, wastewater |
| CF3M | AISI 316L | Excellent – weldable | Food & beverage, pharmaceutical, high-purity |
| Duplex 2205 | UNS S32205 | Superior – pitting/crevice | Seawater, offshore, sour gas |
| 17-4PH | AISI 630 | Very good – high strength | High-pressure pumps, wear applications |
