Custom Stainless Steel Turbocharger Components – Investment Casting
Description
-
COMPREHENSIVE TURBO COMPONENT MANUFACTURING: We produce a complete range of stainless steel turbocharger parts including turbine housings, exhaust manifolds, compressor housings, center housings, wastegate valve bodies, and mounting flanges – all precision-engineered for performance and durability.
-
MULTIPLE MANUFACTURING PROCESSES: Leveraging advanced manufacturing capabilities:
-
Investment Casting (Lost Wax / Silica Sol): For complex geometries like turbine housings and manifolds – achieves CT6-7 tolerances with smooth internal passages
-
CNC Machining (5-axis / 4-axis): For precision components like center housings, flanges, and brackets – holds ±0.01mm tolerances
-
Precision Stamping: For heat shields and thin-wall components
-
-
ENGINEERED FOR EXTREME CONDITIONS: Turbocharger components must withstand:
-
Continuous Operating Temperature: Up to 1050°C (1922°F)
-
Exhaust Gas Velocity: High-flow environments with minimal backpressure
-
Thermal Cycling: Thousands of hot-cold cycles without cracking or deformation
-
Corrosive Environment: Resistance to exhaust condensate and road salt
-
Parameter
| Component | Primary Process | Tolerance | Key Feature |
|---|---|---|---|

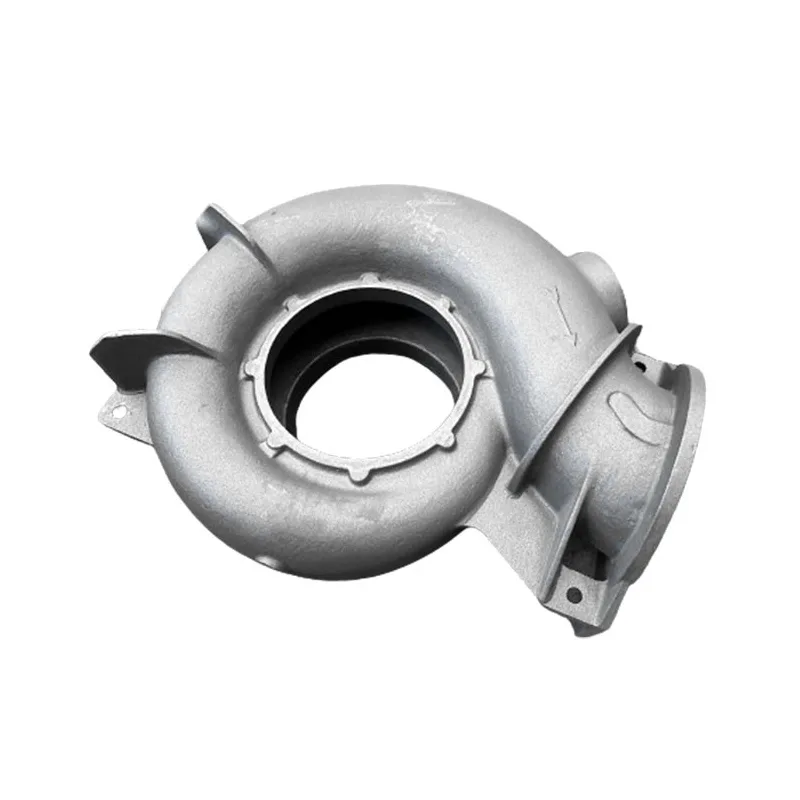

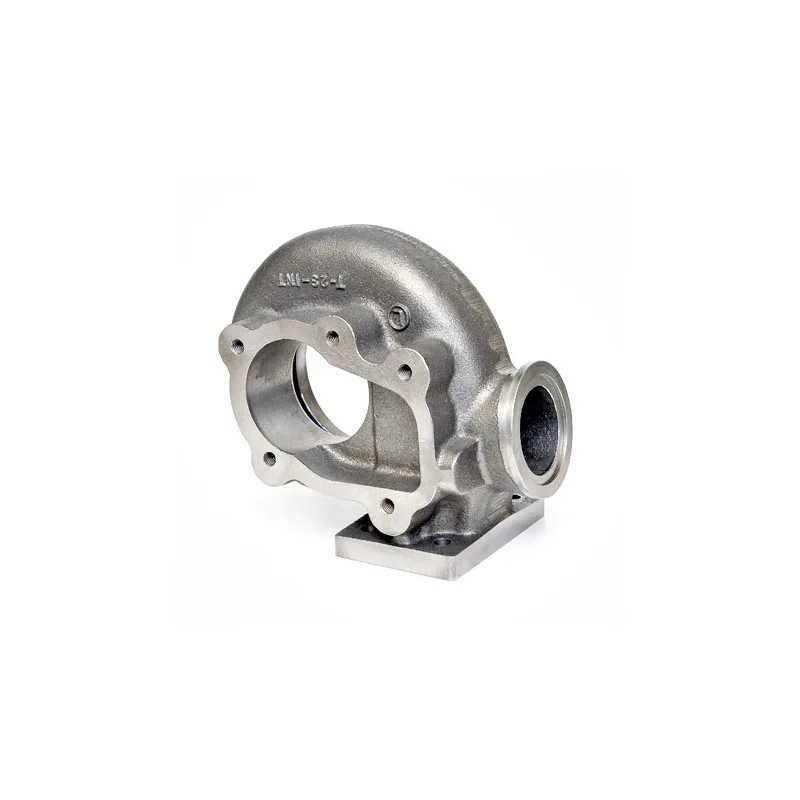

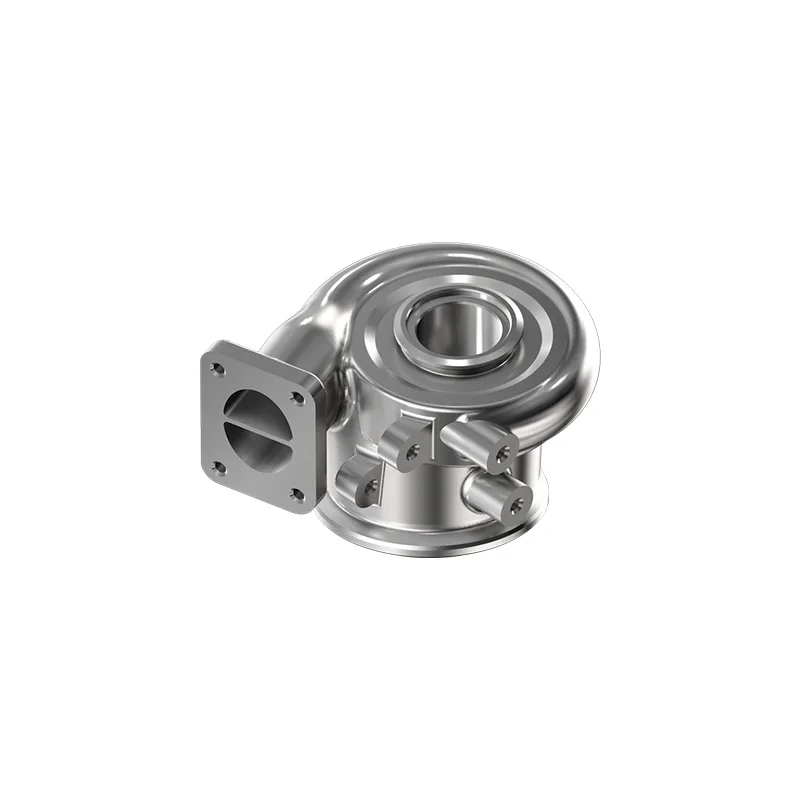

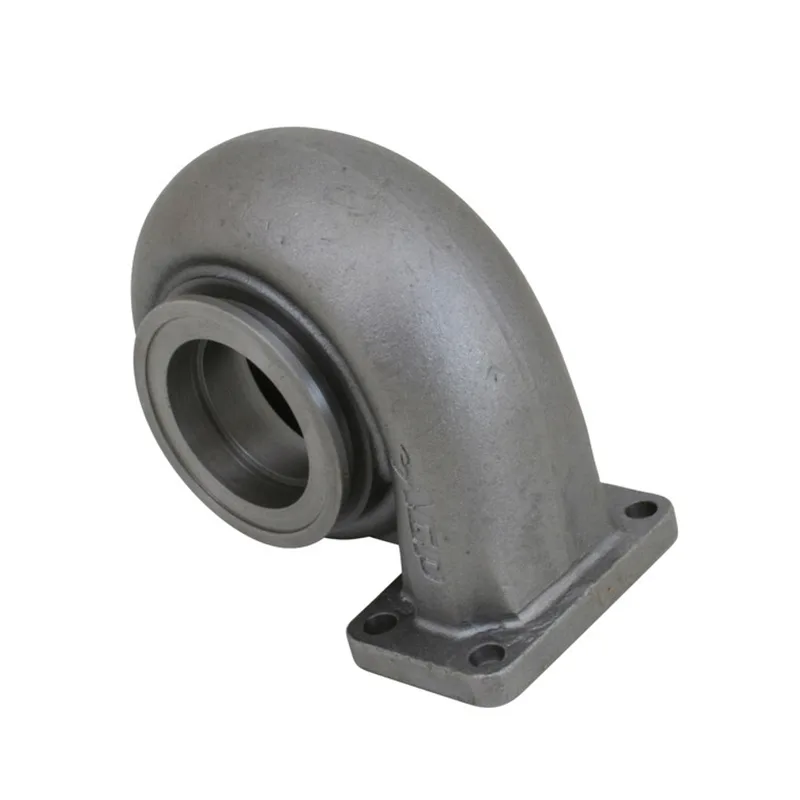

| Turbine Housing | Investment Casting | CT6-7 | Complex internal volute, heat resistance up to 1050°C |
| Exhaust Manifold | Investment Casting / Fabricated | CT6-7 | Runner geometry, collector design |
| Compressor Housing | Investment Casting / Sand Casting | CT7-8 | Aerodynamic inlet, discharge flange |
| Center Housing | CNC Machining (billet) | ±0.01mm | Bearing bore concentricity, oil passages |
| Flanges & Adapters | CNC Machining / Forging | ±0.05mm | Flatness, thread accuracy, port alignment |
| Wastegate Valve Body | Investment Casting / Machined | CT6-7 / ±0.05mm | Valve seat concentricity, diaphragm chamber |
